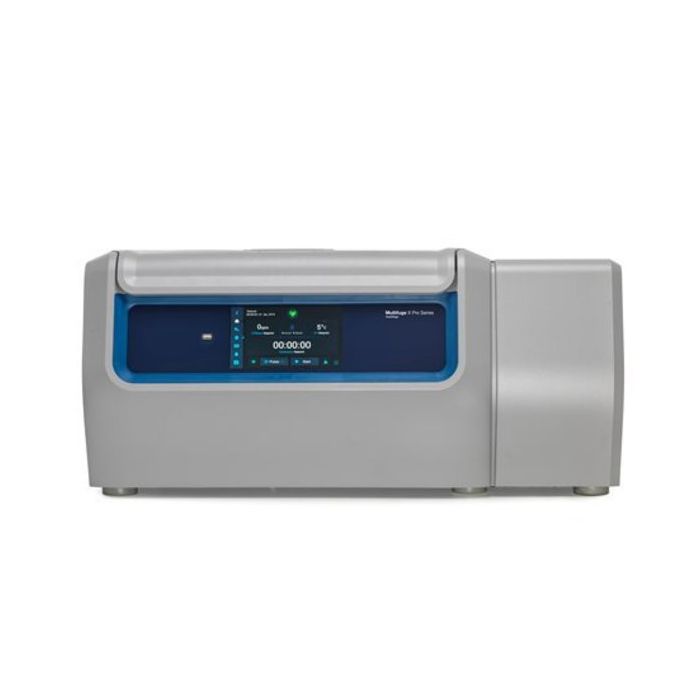

Thermo Scientific Multifuge X4R Pro-MD, 120V
Simple Operation and Design
- Full color intuitive touch screen for fast programming, centrifuge health monitoring and up to 100 program storage
- Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
- Detailed operation information, including display of set and actual parameters, maximizes run performance and temperature accuracy for improved sample protection
- Easily adjust speed, time and temperature, even during the run, with the convenient keyboard for direct input
- Innovative lid-locking technology enables one finger downward motion for easy closing and locking of centrifuge lid, even on tall benches
- Double temperature management system displays the air temperature in the chamber as well as the sample temperature, ensuring accurate control of the sample temperature during the run
Thermo Scientific™ Auto-Lock™ III Rotor System
- Secure locking system allows easy push-button installation and exchange of rotors
- Saves time in switch between applications
- Easy access to the chamber enables quick cleaning, a healthier working environment and longer unit life
Thermo Scientific™ ClickSeal™ Bucket Sealing System
- Biocontainment system seals with a snap; eliminates screw caps and complicated clips
- Glove-friendly, one-handed open/close capability
- Certified by CAMR™ in Porton Down, UK
Thermo Scientific™ SMARTSpin™ Technology
- Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
- Optimizes safety and improves separations
Space-Saving Design
- Compact size conserves workspace on benchtop or floor
- Ergonomic height and curved design ensure comfortable sample handling and cleaning of unit
Energy Efficient
- Design saves up to 40% of energy on industry standard protocols such as blood separations or conical-tube processing
- Programmable centrifuge compressor start and stop can save both time and energy
| Specifications | |
|---|---|
| Accel/Decel Profiles | Choices of 9 Accel / 10 Decel Rates |
| Drive System | Direct, Brushless induction low profile motor |
| Net Weight | 120 kg |
| Program Storage | Up to 100 Programs, including multi-step programming |
| Run Time | Up to 99 hrs 59 minutes 59 seconds |
| Standards | ISO 14971, ISO 13485, ISO 9001 |
| Temperature Range | -10 C to +40 C, +/- 2C |
| Capacity | Max in TX-1000: 196 5/7mL blood tubes, 148 9/10 mL blood tubes, 96 15mL conical tubes, 40 50mL conical tubes, 6 microplates; 4 x 1000 mL BioBottles (with TX-1000 rotors) |
| Product Line | Multifuge™ |
| Rotor | TX-1000 |
| Type | Benchtop |
| Max. RCF | Fixed Angle: 25830 x g (with 30 x 2 mL rotor), Swing-Out: 7164 x g (with BIOShield 1000A rotor) |
| Max. Speed | Fixed Angle: 15,200 x g (with 30 x 2 mL rotor), Swing-Out: 6000 x g (with BIOShield 1000A rotor) |
| Refrigerated | Yes, CFC-Free, Pre-Temp Available |
| Hertz | 50 / 60 Hz |
| Voltage | 120V |
| Display | Full Color Touch Screen Interface |
| Height (English) Exterior | 14.2 in |
| Height (English) Open Cover | 33.9 in |
| Height (Metric) Exterior | 361 mm |
| Height (Metric) Open Cover | 861 mm |
| Length (English) Exterior | 27.2 in |
| Length (Metric) Exterior | 690 mm |
| Noise Level | <64 dB(A) (Rotor F15-8x50c; 14500 RPM; ) |
| Timer | Option to count up or down |
| Width (English) Exterior | 29.4 in |
| Width (Metric) Exterior | 746 mm |
| Wattage | 1450 W |
| Certifications/Compliance | EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15 |
| Includes | Printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord for the according country supply voltage, declaration of conformity |
| Description | Thermo Scientific Multifuge X4R Pro-MD, 120V |
| Electrical Requirements | 120V |
| Dimensions (L x W x H) Exterior | 690mm x 746mm x 361mm |
| Controller Type | Microprocessor |
| For Use With (Equipment) | Purchase of Thermo Scientific rotor and accessories required for operation |
| Material | front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLED). The unit feet are out of rubber. |
| Depth (Metric) Exterior | 690 mm |
| Depth (English) Exterior | 27.2 in |
| Rotor Included | No |
| Warranty | 5 Year Limited |
| Programmability | Via Touch Screen; Including programmabile Pulse options |
| Unit Size | Each |
| Voltage | 120 V |
|---|
