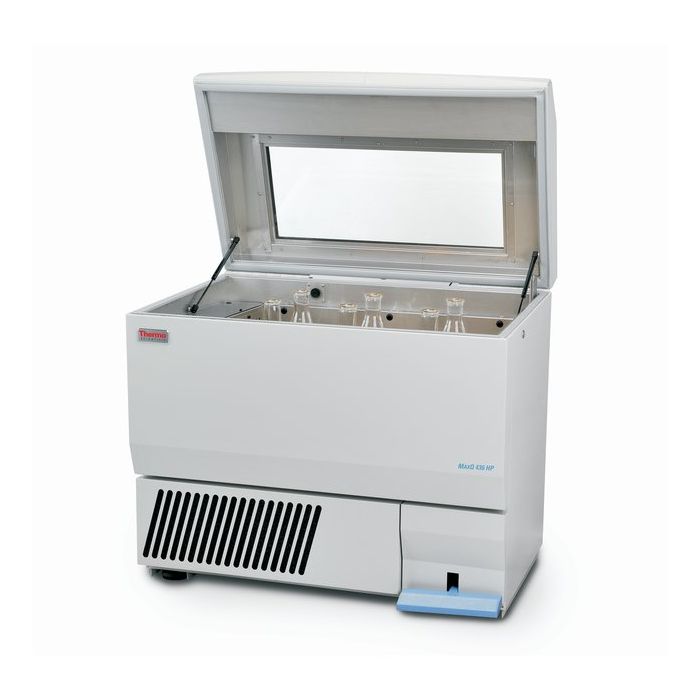

MaxQ™ HP Incubated and Refrigerated Console Shakers - INCUBATED FLOOR MODEL SHAKER, 120V, 50/60HZ
- Shakers feature HEPA filtration for maximum protection from contamination
- Directed airflow system for optimum temperature uniformity and ideal growth conditions
- Ergonomic design ensures convenient access, and a front drain system makes the chamber easy to clean
Microprocessor Control:
- Operating temperatures: Incubated: 5°C above ambient to 60°C (41°F to 140°F) or Incubated/Refrigerated: 4°C above ambient to 60°C (39.2° to 140°F) in 0.1°C increments with ±0.1°C control
- Displays run and setpoints of temperature, speed and time simultaneously on a 20-character backlit display
- Alphanumeric status messages on cycle status
- Menu-driven programming for quick, easy access to all parameters
- Audible/visual over- and undertemperature tracking and safety alarms ensure product protection
- Audible/visual, high/low rpm tracking alarms alert to speed deviations
Performance:
- Unique HEPA filtration system
- HEPA filter rated a minimum 95% efficient at 0.3µm for entrapment of extraneous airborne particulats
- Laminar airflow across the chamber aids temperature uniformity
- Low-end temperature achieved by filtered, front-to-back refrigeration system airflow
Construction:
- Crevice-free, stainless-steel interior with coved corners for easy cleaning
- Drain system with valve in front of chamber for easy liquid elimination
- Lid opens by hand or by depressing foot pedal for hands-free operation when loading vessels
- Angled sides, lower front, and convenient platform height ensure a comfortable reach into chamber
- Thermal pane window provides a large 2.75 sq. ft. (0.3m2) viewing area
- Access port (back of cabinet wall) for probes, CO2 gassing manifold, or other equipment
- Optional shelf provides additional storage
Ordering Information:
Platform not included.
Specifications | |
---|---|
Model | Incubated Console Shakers |
Speed Range | 25 to 525 rpm |
Temperature Range (English) | 41°F to 140°F, 39.2°F to 140°F |
Temperature Range (Metric) | Ambient+5° to 60°C |
Temperature Resolution | ±0.1°C |
Temperature Uniformity | 0.2°at 37°C (in Flask) |
Orbit | 2.5cm (1 in.) |
Length (English) Platform | 29.5 in. |
Width (English) Platform | 18 in. |
Length (Metric) Platform | 74.9cm |
Width (Metric) Platform | 45.7cm |
Capacity | 4L and 6L Flasks |
Control | Digital |
Amperage | 8.6A |
Depth (English) Interior | 21.1 in. |
Depth (Metric) Interior | 53.6cm |
Height (English) Exterior | 40.4 in. |
Height (English) Interior | 18.5 in. |
Height (Metric) Exterior | 102.6cm |
Height (Metric) Interior | 47cm |
Hertz | 60Hz |
Humidity Range | 0% RH at or below 31°C (87.8°F) |
Length (English) Exterior | 30 in. |
Length (Metric) Exterior | 76.2cm |
Load Bearing Capacity | 71 lb. (32kg) |
Motor Type | DC brushless |
Net Weight (English) | 610 lb. |
Net Weight (Metric) | 277kg |
Plug Type | NEMA 5-15P plug |
Shipping Weight (English) | 665 lb. |
Shipping Weight (Metric) | 302kg |
Timer | Continuous or timed operation from 1 minute up to 199 hours and 59 minutes |
Width (English) Exterior | 45 in. |
Width (English) Interior | 34.3 in. |
Width (Metric) Exterior | 114.3cm |
Width (Metric) Interior | 87.1cm |
Description | Incubated Floor-Model Console Orbital Shaker |
Item Description | Incubated Floor-Model Console Orbital Shaker |
Type | Shakers |
Certifications/Compliance | UL, cUL, CE |
Dimensions (L x W x H) Exterior | 30 x 45 x 40.4 in. (76.2 x 114.3 x 102.6cm) |
Dimensions (D x W x H) Interior | 21.1 x 34.3 x 18.5 in. (53.6 x 87.1 x 47cm) |
Electrical Requirements | 120V 60Hz |
Speed | 25 to 525 rpm |
Voltage | 120 V |
Unit Size | Each |
Voltage | 120V 60Hz |
---|
