Heracell™ VIOS™ 160i CO2 Incubator with Cell Locker™ CO2 Incubator, 165 L per chamber, E/SS - Unit Only 120V
CO2 Incubator with Cell Locker System
- 165L interior chamber with the new 6 segmented, gas ight inner door configuration and 3 shelves designed to accommodate 6 individual Cell Locker chambers.
- Choice of electropolished stainless steel or 100% pure copper chamber interior.
- Temperature resistant, bulb-free IR CO2 sensor (IR180Si).
- THRIVE airflow technology provides enhanced stability,tight uniformity, and fast recovery.
- ISO Class 5 HEPA filtration provides clean room air quality in the chamber.
- Thermo Scientific iCAN touchscreen interface provides bright at-glance monitoring and complete data visibility to monitor all incubator interactions and parameters.
- Thermo Scientific Steri-Run on-demand, overnight 180ËšC sterilization cycle achieves 12 log Sterility Assurance Level (SAL) total sterilization of chamber (excluding Cell Locker chambers )
Stability of Conditions
- Cultures spend more time in conditions that best mimic the in vivo state.
- When one Cell Locker chamber is opened, the other Cell Locker chambers maintain stable conditions, preserving the in vitro environment.
- Conditions remain stable within these spatial deviations - temperature +/-0.3ËšC , humidity +/-3%, and CO2 +/-0.2%.
- For consistent results, the uniformity in each Cell Locker chamber is +/-0.3ËšC
- Compared to the standard single glass door design, the temperature drop in the opened Cell Locker chamber is reduced by 50%.
- With the Cell Locker system, gas consumption from a door opening is reduced by 50%, saving time and money.
Sample Protection
- Individual chambers maximize security against costly cross contamination.
- Each individual Cell Locker chamber is effectively a quarantine chamber.
- Dual 0.2µm membrane filters permits air circulation but exclude microbial contaminants.
- The replacable 0.2µm membrane filter has an effective pore size of 0.02µm when filtering air and is hydrophobic, oleophobic, resistant to organic solvents and tested for biosafety and low cytotoxicity.
- Independent 3rd party tests validate protection against circulating microorganisms (when used as directed)
Flexibility of Use
- The Cell Locker System can be configured to fit unique needs of your lab.
- Different cell types, samples, users or projects can be segregated within shared incubator space.
- Each Cell Locker chamber holds 9 each T-75 cell culture flasks, 20 each 6-well plates, or 24 each 96-well plates.

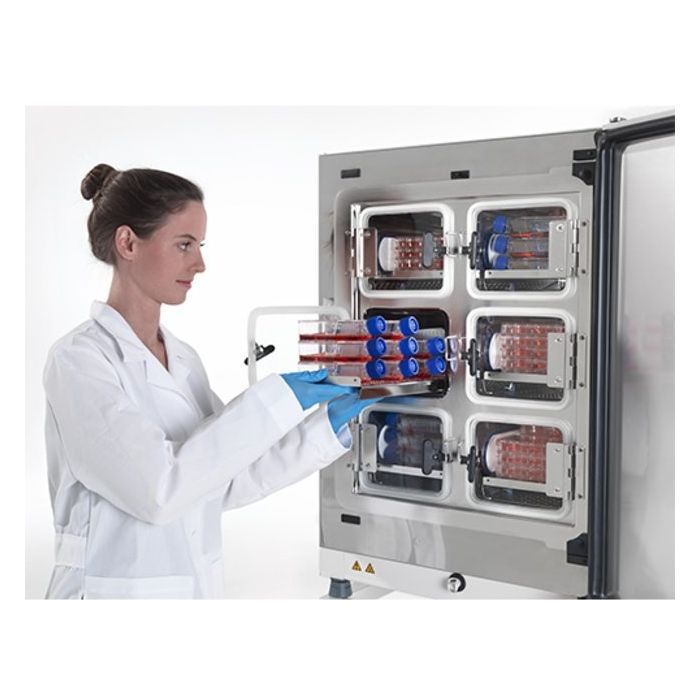

- Dishes and flasks can be removed individually on a work tray or inside the entire Cell Locker chamber with optional transport cover, thus protecting samples from outside air.
- The non skid tray slides out to allow access to culture vessels, or the entire tray can be removed.
- The Cell Locker chamber can be manually disinfected or can be autoclaved.
| Specifications | |
|---|---|
| Capacity (English) | 5.8 cu. ft. |
| Certifications/Compliance | CE, CSA |
| Data Outputs | USB, and optional 4-20mA |
| Description | Single 165L copper chamber configured for Cell Locker system, (Cell Locker chambers ordered separately) |
| Capacity (Metric) | 165 L/chamber |
| Chamber Material | Electropolished Stainless Steel |
| Dimensions (D x W x H) Interior | 22.7 x 18.5 x 23.9 in. (57.6 x 47 x 60.7 cm) |
| Dimensions (L x W x H) | 34.6 x 25.1 x 35.4 in (88 x 63.7 x 90 cm) |
| Temperature Range (Metric) | Ambient +3°C to 55°C |
| Relative Humidity | =93% at 37°C |
| Material | Stainless Steel |
| Electrical Requirements | 120 V, 50/60 Hz |
| Humidity Source | Covered integrated water reservoir |
| Weight (English) | 183 lb. |
| CO2 Sensor Technology | IR Sensor |
| Lighting | LED |
| O2 Concentration Range | Optional 1 to 21% or 5 to 90% |
| Type | CO2 Incubator |
| Oxygen Control | Optional 1 to 21% or 5 to 90% |
| CO2 Concentration Range | 1 to 20% |
| No. of Places | 53 |
| Unit Size | Each |
| Voltage | 120 V, 50/60 Hz |
|---|
