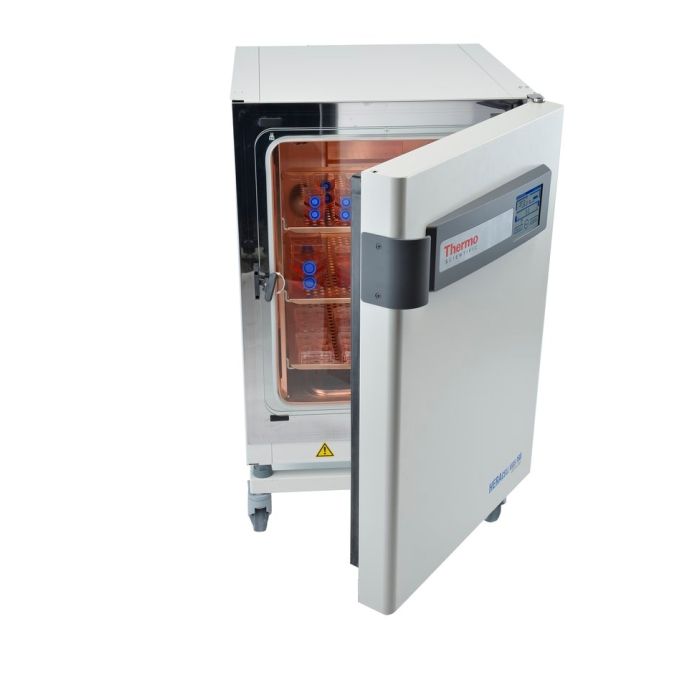

Heracell™ VIOS 160i Tri-Gas CO2 Incubator, 165 L, Copper - Tri-gas, 1-21% O2 Control, IR CO2 sensor, 120V, 50/60 Hz

Details

Direct heat chamber

165L (5.8 cu.ft.) 100% solid copper chamber with compact footprint, easily stackable
Standard left hand door swing, field reversible by qualified service support

THRIVE active airflow

In-chamber fan gently distributes clean, humidified air throughout the chamber ensuring homogeneous conditions
Fast recovery of all parameters in 10 minutes or less for stable culturing conditions
Auto-stop function disables fan operation during door openings to minimize air exchange
ISO Class 5 HEPA filtration
In-chamber HEPA continuously filters the entire chamber air volume every 60 seconds
ISO Class 5 clean room air quality is achieved in the culture chamber within 5 minutes
Continuous protection minimizes airborne contaminants settling on interior surfaces

Covered Integrated humidity reservoir

Directly heated water reservoir provides stable high relative humidity levels, preventing culture desiccation
Cover limits particles and spilled media from settling into the reservoir, keeping water clean
Separating water provides a condensation free incubation chamber, limiting areas for contaminants to breed
5X faster humidity recovery than traditional water pan designs
Easy water handling: humidity reservoir may be filled or drained without removing shelves or cultures
Water level sensor indicates when a refill is needed

Steri-Run on-demand high temperature sterilization cycle

Independently validated overnight cycle ensures complete elimination of all biological contaminants
180°C cycle designed for uniform 12-log sterilization on all chamber surfaces
Simplifies cleaning and eliminates the need for separate autoclaving and reassembly of components

Intuitive, interactive iCAN touchscreen control

Bright LED screen to monitor all incubator interactions
Provides visibility to changes in culture environment with performance trend graphing, error and usage logs
Convenient on-screen user prompts and reminders for easy navigation
Selectable languages simplify operation: English, Spanish, German, French, Italian, Japanese and Mandarin

Wireless Monitoring Solution

Thermo Scientific™ DeviceLink HUB™, our easy-to-install solution, works with the Thermo Fisher Cloud to monitor conditions inside your CO₂ incubators.

DeviceLink HUB monitors chamber temperature, gas levels, alarms, and alerts from the incubator data output connection, RS-232 or USB
Alarms and notifications are also sent to the user by email and mobile push notification
DeviceLink HUB is an optional accessory for models with the iCAN touchscreen interface
DeviceLink HUB is available in the following regions
- United States and Canada
- 28 members of the European Union
- Iceland, Liechtenstein, Norway, and Switzerland

In situ sensors and probes designed for precise control

Dual temperature probes for over temperature protection with operational back up
Thermal conductivity (TC) CO₂ sensor with rH compensation designed for fast recovery and stable operation

Ordering information

To configure 230V models to tri-gas with O₂control, please order 51901145 for 1-21% and 51901146 for 5-90% control.

Specifications
Capacity (English)	5.8 cu. ft.
Certifications/Compliance	CE, CSA
Data Outputs	USB, and optional 4-20mA
Description	Single Tri-gas 165L incubator, 1-21%
Capacity (Metric)	165 L
Chamber Material	Copper
Dimensions (D x W x H) Interior	22.7 x 18.5 x 23.9 in. (57.6 x 47 x 60.7 cm)
Dimensions (L x W x H)	34.6 x 25.1 x 35.4 in. (88 x 63.7 x 90 cm)
Temperature Range (Metric)	Ambient +3°C to 55°C
Relative Humidity	<93% at 37°C
Electrical Requirements	120 V, 50/60 Hz
Humidity Source	Covered integrated water reservoir
Weight (English)	183 lb.
CO2 Sensor Technology	IR Sensor
Lighting	LED
O2 Concentration Range	1 to 21%
Type	CO2 Incubator
Oxygen Control	1 to 21%
CO2 Concentration Range	1 to 20%
Unit Size	Each

More Information

More Information
Voltage	120 V, 50/60 Hz
