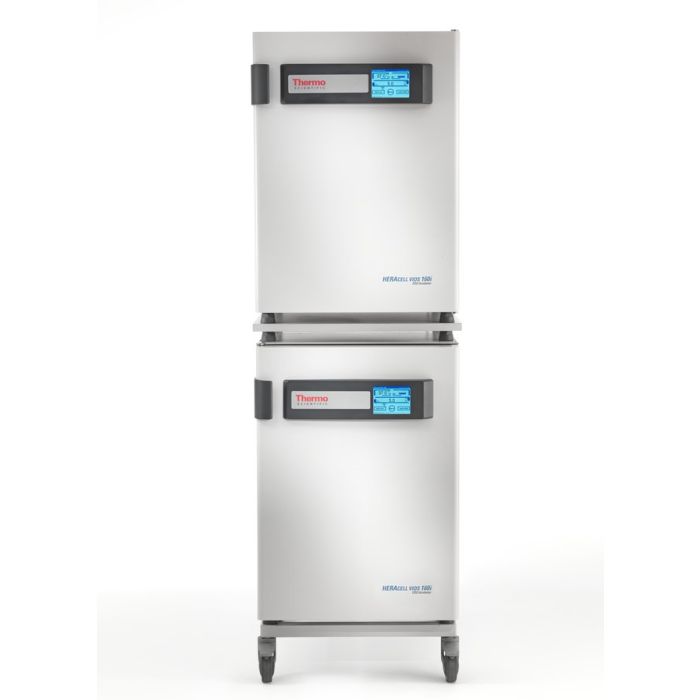

Heracell™ VIOS 160i CO2 Incubator Dual Chamber, 165 L per chamber, E/SS - IR180Si CO2 sensor, 120V
$25,500.00
Quote Required
SKU
50145504
Achieve your next breakthrough. The Thermo Scientific HeracellVIOS CO2 incubator is specifically designed to deliver the performance reliability, ease of operation, and value required to support a range of culturing needs from basic research to the demanding, leading-edge applications, so you're rea
Direct Heat Chamber
- 165L electropolished stainless steel chamber with compact footprint, easily stackable
- Adjustable, perforated shelving
- Reversible exterior door for added flexibility
THRIVE Active Airflow
- In-chamber fan gently distributes clean, humidified air throughout the chamber ensuring homogeneous conditions
- Fast recovery of all parameters ten minutes or less for stable culturing conditions
- Auto-stop function disables fan operation during door openings to minimize air exchange
ISO 5 HEPA Filtration
- In-chamber HEPA continuously filters the entire chamber air volume every 60 seconds
- ISO 5 clean room air quality is achieved in the culture chamber within five minutes
- Continuous protection by minimizing ability for contaminants to settle on interior surfaces
Protected Humidity Reservoir
- Directly heated water reservoir provides stable high relative humidity levels, preventing culture desiccation
- Condensation free inner chamber, prevents a breeding ground for contaminant
- 5X faster humidity recovery than traditional water pan designs
In situ sensors and probes
- Dual temperature probes for over temperature protection with operational back up
- Choice of thermal conductivity (TC) with rh compensation or single beam, dual wavelength infrared (IR) CO2 sensor
- O2 control ranges 1 to 21% (hypoxic) and 5 to 90% (hyperoxic)
Steri-Run, high temperature defection cycle
- Overnight cycle simplifies cleaning and eliminates the need for separate autoclaving of parts
- 180°C cycle assures uniform 6-log sterilization on all chamber surfaces
Intuitive, interactive iCAN™ Touchscreen Control
- Bright, door-mounted display for easy accessibility and viewing
- Selectable languages simplify operation: English, Spanish, German, French, Italian, Japanese and Mandarin
| Specifications | |
|---|---|
| Capacity (English) | 5.8 cu. ft. |
| Certifications/Compliance | CE, CSA |
| Data Outputs | USB, and optional 4-20mA |
| Description | Dual 165L Stack, 2 x 51030475 with stacking adapter and rollerbase |
| Capacity (Metric) | 165 L/chamber |
| Chamber Material | Electropolished Stainless Steel |
| Dimensions (D x W x H) Interior | 22.7 x 18.5 x 23.9 in. (57.6 x 47 x 60.7 cm) per chamber |
| Dimensions (L x W x H) | 34.6 x 25.1 x 35.4 in. (88 x 63.7 x 90 cm) per chamber |
| Temperature Range (Metric) | Ambient +3°C to 55°C |
| Relative Humidity | <93% at 37°C |
| Material | Stainless Steel |
| Electrical Requirements | 120 V, 50/60 Hz |
| Humidity Source | Covered integrated water reservoir |
| Voltage | 120 V |
| Weight (English) | 183 lb. per chamber |
| CO2 Sensor Technology | IR Sensor |
| Lighting | LED |
| Type | CO2 Incubator |
| Oxygen Control | None |
| CO2 Concentration Range | 1 to 20% |
| Unit Size | Each |
