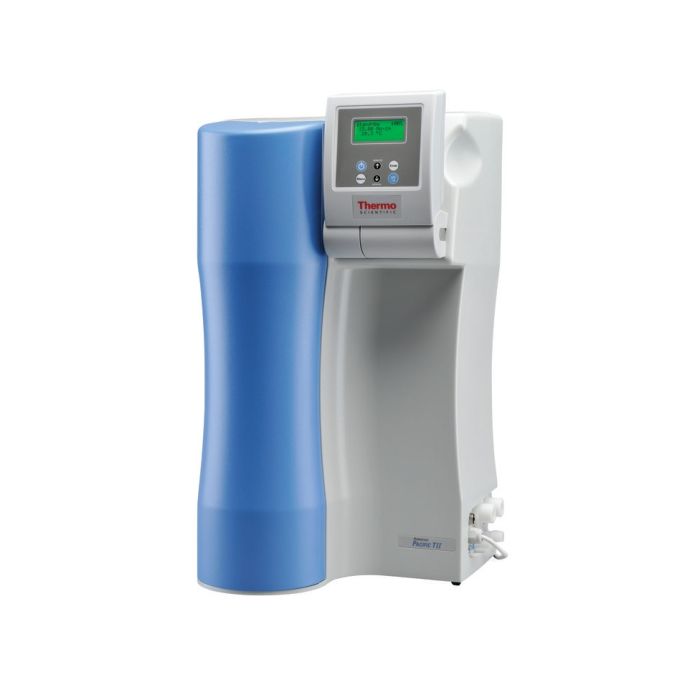

Barnstead™ Pacific TII Water Purification System - Barnstead Pacific TII 20 (UV)
Multiple options for Type 2 water:
- Five system options with permeate flows of 3, 7, 12, 20 or 40L/hr.
- Future system upgrades accommodate greater capacities to meet growing water demands
- Space-saving design permits benchtop installation or wall mounting with integrated mounting bracket
Operational reliability:
- Microprocessor controlled for automatic operation with continuous monitoring of all critical parameters
- Automatic return to “operating” mode ensures recirculation during standstill periods
- UV lamp prevents biological contamination (UV models only)
Easy-to-operate
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
- Status of current operating mode clearly indicating “production”, “stand-by”, “cleaning” modes
- Reservoir fill-level shown as %
- System parameters are code-protected to prevent accidental changes to set points
GLP-Compliant documentation
- Optional printer connects to RS-232 port for data recording and traceability
- Cell constant of 0.01cm-1 ensures precise conductivity measurements
- Temperature compensation for the conductivity measurement has an accuracy of ±0.1°C (in conformity with USP 645)
Optional Hand Dispenser
- Gain increased flexibility by adding a hand dispenser with 3 meter cord which connects to tank. Use only with a tank equipped with a pressure pump (06.5032, 06.5062, 06.5082). Ships with a 0.2 micron final filter. (Part #50138221)
| Specifications | |
|---|---|
| Frequency | 50/60 Hz |
| Feedwater Connector | 3/4 in. NPT |
| Product Water Type | Type 2 |
| TOC Monitor with UV Intensity Monitoring | No |
| Type | Water Purification System |
| Resistivity | 10 to 1 Mohm.cm at 25°C |
| Conductivity | 0.1 to 1.0µS/cm |
| Daily Output | 20 to 200 L |
| Feedwater Source | Tap |
| Flow Rate | 20 L/hr. at 10°C |
| Total Organic Carbon | <30 ppb |
| Bacterial Content | 99% |
| Particles >0.2µM/mL | <1 µM/mL |
| Feed Water Monitoring | No |
| Feedwater Pressure | 1 to 6 bar |
| Height (Metric) | 613 mm |
| Width (Metric) | 372 mm |
| Net Weight (Metric) | 25 kg |
| Operating Pressure | 2 to 6 bar |
| Voltage | 90/240 V |
| Temperature Range (Metric) | 2°C to 35°C |
| Bacterial retention | 99% |
| Depth (Metric) | 330 mm |
| Description | Pacific TII 20 (UV) |
| Permeate performance | 20 L/hr. at 10°C |
| Electrical Requirements | 90/240 V 50/60 Hz |
| Unit Size | Each |
| Voltage | 90/240 V 50/60 Hz |
|---|
