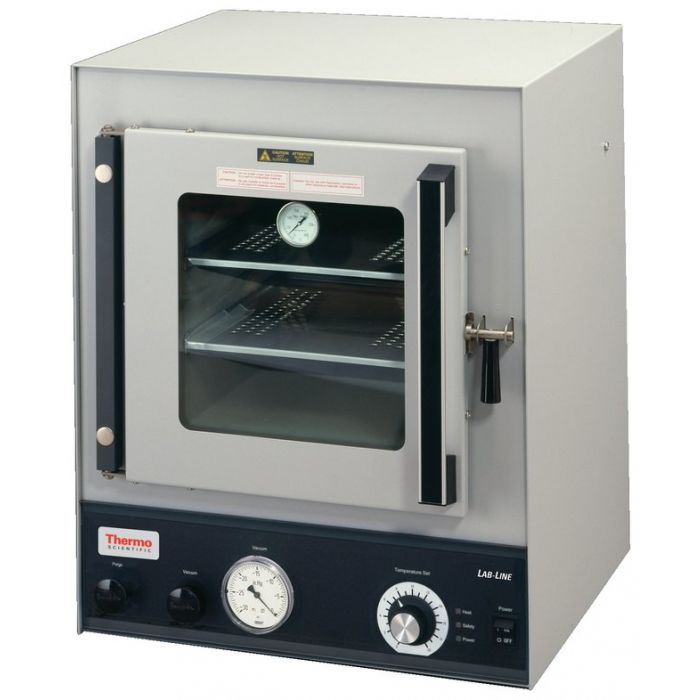

Hi-Temp Vacuum Ovens - 1.5CF 240V
- Two convenient sizes: Small and large model, 18L (0.65 cu.ft.) and 42.4L (1.5 cu.ft.)
- Temperature range: Ambient +10°C / 50°C to 280°C
- Radiant warm wall heaters mounted on the outside conserve chamber working space and help eliminate potential hazards of open wire heaters
- Compression fittings on the side of the unit accept 6.4mm (0.25 in.) outer diameter hard tubing for pump and air connections
- Vacuum and air lines of corrosion-resistant stainless-steel tubing optimize chamber cleanliness and long-term performance
- Durable exterior is powder-coated heavy-gauge steel
- Glass window in the door allows for sample viewing
- Two adjustable chrome-plated shelves help improve heat conduction or transfer to samples; easily removable for cleaning
Small models 3625A and 3625A-1
- Dual-electronic control system with dial thermometer (no display)
- For operational convenience, all controls and indicators are located on the front panel: power switch and three indicators, purge gas and vacuum control valves, a 0-to-30-inch vacuum gauge and a temperature control
Large models 3628A and 3628A-1
- Single set point controller
- Seven-day programmable timer that cycles oven on or off up to eight times per day with automatic temperature/ vacuum control in real time steps
- Dual displays provide constant day/ time and temperature/pressure updates every 5 seconds
Recommended for:
- Desiccation
- Vacuum embedding
- Plating
- Process control
- Inert atmosphere
| Specifications | |
|---|---|
| Amperage | 6 A |
| Capacity (English) | 1.5 cu.ft. |
| Chamber Material | Stainless Steel |
| Depth (English) | 26 in. |
| Depth (English) Interior | 18 in. |
| Depth (Metric) Interior | 46 cm |
| Display | LED (2) |
| Frequency | 50/60 Hz |
| Height (English) | 22 in. |
| Height (English) Interior | 12 in. |
| Height (Metric) | 46 cm |
| Height (Metric) Interior | 30 cm |
| Shelf Material | Chrome-plated |
| Shipping Weight (English) | 205 lb. |
| Shipping Weight (Metric) | 92.9 kg |
| Temperature Uniformity | ±5°C at 100°C 25 ft.Hg |
| Wattage | 1400 w |
| Width (English) Interior | 12 in. |
| Width (Metric) Interior | 30 cm |
| Temperature (Metric) | 50°C to 280°C |
| Voltage | 240 V |
| Depth (Metric) | 66 cm |
| Description | 240V 1400w 6A; 1.5 cu. ft. (42.4L) |
| Capacity (Metric) | 42.4 L |
| Dimensions (D x W x H) Interior | 18 x 12 x 12 in. (46 x 30 x 30 cm) |
| Type | Vacuum Oven |
| Electrical Requirements | 240 V 50/60 Hz |
| Material | Powder-coated Heavy-gauge Steel |
| Width (English) | 23 in. |
| No. of Shelves | 2 |
| Width (Metric) | 58 cm |
| Unit Size | Each |
| Voltage | 240 V 50/60 Hz |
|---|
